Description
Product details

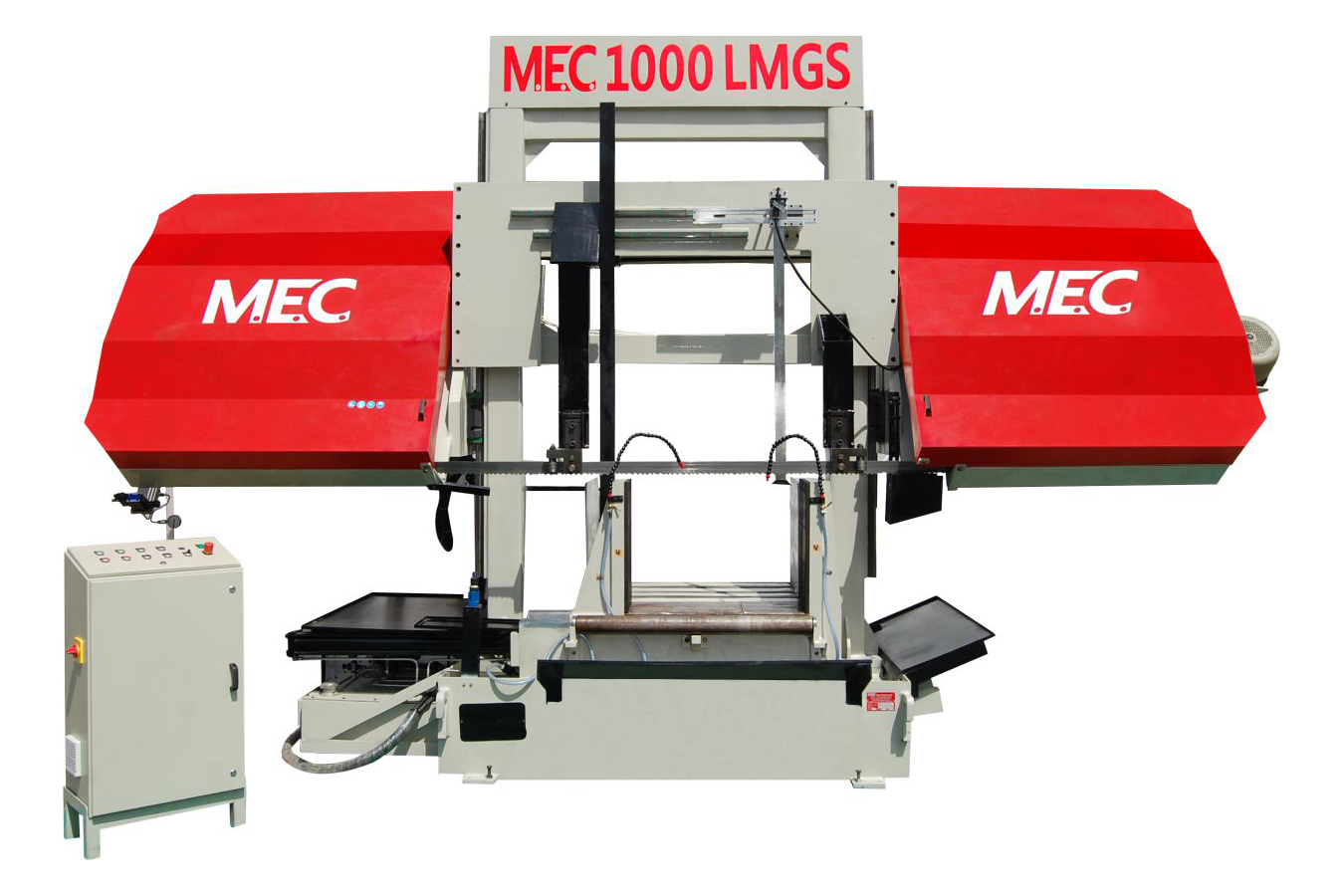

Semi-Automatic Metal Cutting Band Saw Machine Based on Linear Motion Guide way 1000 LMGS – Semi Automatic Double Column Band Saw Machine for metal cutting with high accuracy and high efficiency at lowest energy consumption. Uses latest linear ball guideways to provide solid, smooth running and maintenance-free performance. Strongly built straight cutting bandsaw machine. Extremely rugged and powerful saw blade drive. Lowerable vice for a smooth and frictionless material handling Sensitive saw feed automatic. FEATURES- Standard equipment Hydraulic material full-stroke clamping Powerful AC-saw drive for high efficiency coupled with low power consumption Automatic adjustment of saw blade guidance to material width Sturdy main clamping vice (double clamping vice) 67mm saw blade provides maximum cutting power Minimum speed- and saw blade control on the band wheel TECH SPECIFICATIONS- Cutting Capacity (MM) Round – 1000, Rectangle – 1000 x 950 Cutting Speed in mtr/ min. 20 – 100 Blade Size (MM) 10500 x 67 x 1.3 mm Blade Tension Hydraulic Saw Motor (H.P.) 15 HP Hydraulic Motor (H.P.) 3.0 HP Coolant Motor (H.P.) 0.25 HP Job Clamping Hydraulic Job Indexing (MM) Manual Hydraulic Reservoir (Ltr) 90 Ltr. Over all Dimension 3400 x 1950 x 2350 mm
