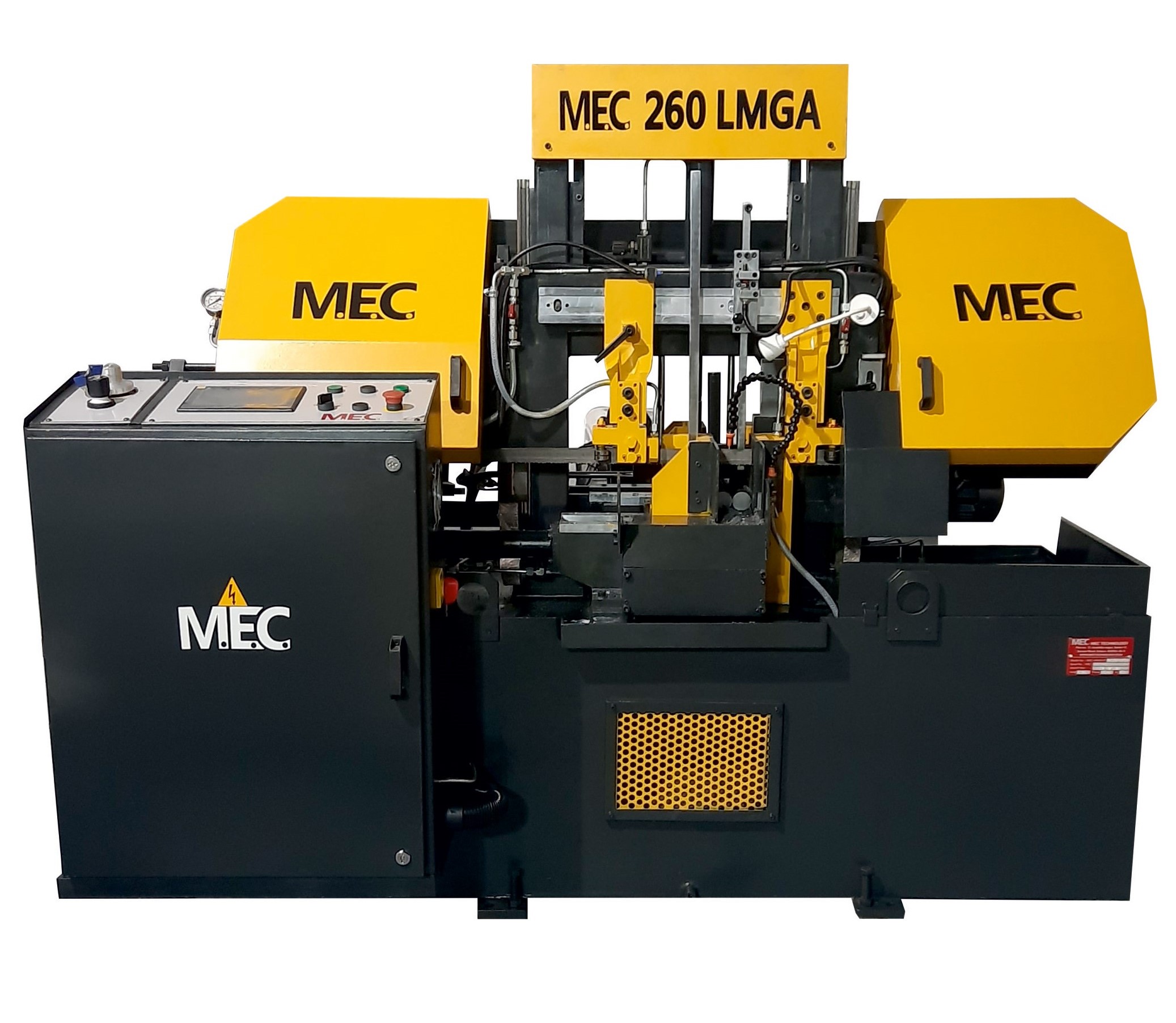

We manufacture, supply & export the best range of semi-automatic & automatic horizontal bandsaw machines. We deal in a wide range of these machines including swing type and double column semi automatic bandsaw machines and fully automatic machines as well as special purpose automatic double column bandsaw machine. 260 LMGA– Fully Automatic Double Column Band Saw Machine on Pre-hardened LM guideway for smooth operation and high accuracy specially designed for providing high productivity in low investment. FEATURES- Saw frame movement on pre-hardened and pre-loaded LM guides for friction free movement. High Efficiency Power Transmission through helical gear box. Adjustable Dovetail type Heavy duty Movable Blade guide with ball bearing. Infinitely variable Feed Control Valve for Setting the Cutting feed & upward movement by hydraulic cylinder. Electrical control panel with high quality switchgears. Automatic switch-off of the blade after finishing the cut. Automatic heights stop for saw frame to save idle time. Hydraulic Power Pack with easy maintenance. Double Acting Hydraulic Cylinder for Main vice Clamping & De-clamping. TECH SPECIFICATIONS- Cutting Capacity (MM) Round – 260, Rectangle – 260 X 260 Cutting Speed in mtr/ min. 20 – 80 Blade Size (MM) 4100 x 34 x 1.1 mm Blade Tension Manual Saw Motor (H.P.) 4.0 HP Hydraulic Motor (H.P.) 1.5 HP Coolant Motor (H.P.) 0.15 HP Job Clamping Hydraulic Job Indexing (MM) Manual Hydraulic Reservoir (Ltr) 45 Ltr. Over all Dimension 2100 x 800 x 1800 mm
