Description
Product details

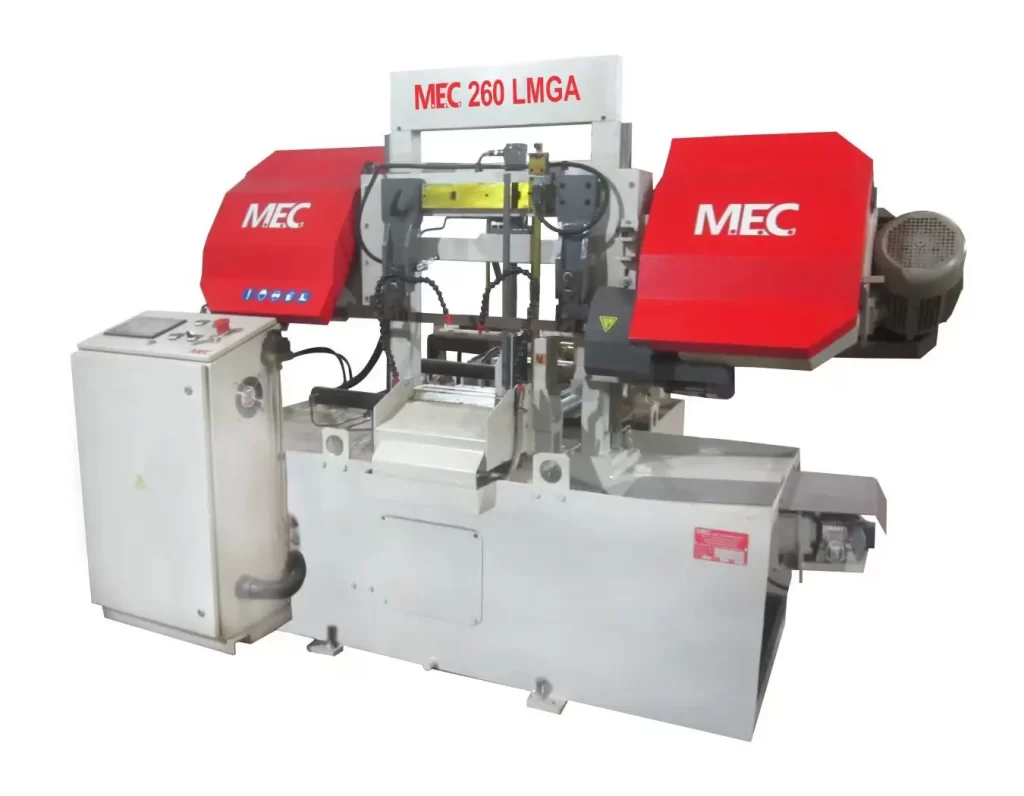

260 LMGA – Automatic Double Column BandSaw Machine designed & built on Pre-hardened LM guideway for smooth operation and high class quality at affordable price. Cutting operation and cutting jobs can be programmed through touch screen. HMI offers digital cutting length settings and real time information such as cutting speed, cutting rate, cutting pieces, and much more. FEATURES- Saw frame movement on pre-hardened and pre-loaded LM guides for friction free movement. High Efficiency Power Transmission through helical gear box. Hydraulic Blade Tensioning arrangement. Automatic machine off in case of blade breakage or loss of hydraulic pressure. Adjustable Dovetail type Heavy duty Movable Blade guide with ball bearing. Automatic switch-off of the band after finishing the cut. Automatic heights stop for saw frame to save idle time. Hydraulic Power Pack with easy operations & maintenance. Double Acting Hydraulic Cylinder for Main vice Clamping & De-clamping. Infinitely variable Feed Control Valve for Setting the Cutting feed. Electrical control panel with high quality switchgears. TECH SPECIFICATIONS- Cutting Capacity (MM) Round – 260, Rectangle – 260 X 260 Cutting Speed in mtr/ min. 20 – 90 Blade Size (MM) 4100 x 34 x 1.1 mm Blade Tension Hydraulic Saw Motor (H.P.) 5.0 HP Hydraulic Motor (H.P.) 1.5 HP Coolant Motor (H.P.) 0.12 HP Job Clamping Hydraulic Job Indexing (MM) 600 Hydraulic Reservoir (Ltr) 60 Ltr. Over all Dimension 2300 x 900 x 2200 mm
