Description
Product details

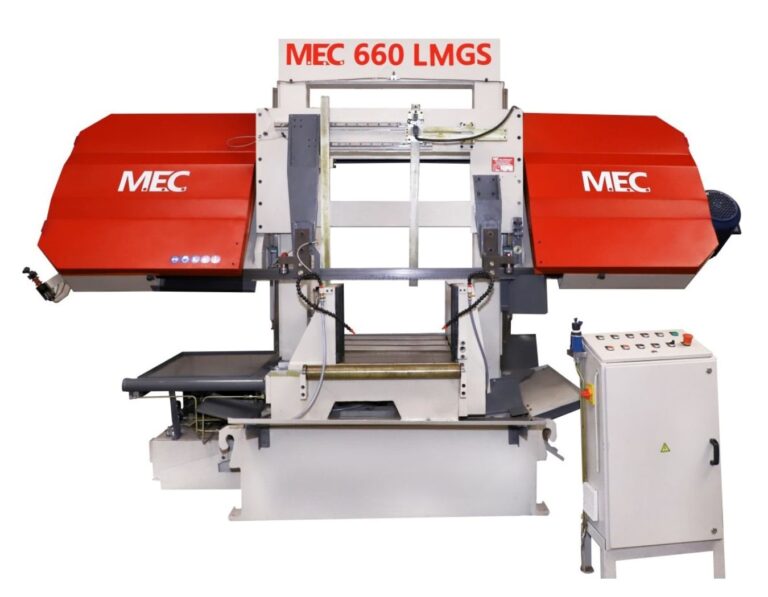

Semi-Automatic Metal Cutting Band Saw Machine Based on Linear Motion Guides 660 LMGS – Semi Automatic Double Column Band Saw Machine for metal cutting with high accuracy and high efficiency at lowest energy consumption. The 660 LMGS Band saw machine is designed to offer more flexible cutting operations to Tool & Die makers, Steel traders, metal processing industries, automobile industry, engineering workshops, where variety of jobs needs to cut, ranging from plates, rounds, squares, hex, Tubes, Angles, I-beams etc. FEATURES- Smooth frame movement on LM guides for friction free movement. Automatic machine off in case of blade breakage or loss of hydraulic pressure. Adjustable Dovetail type Heavy duty Movable Blade guide with ball bearing. Automatic switch-off of the band after finishing the cut. Automatic heights stop for saw frame to save idle time. Hydraulic Power Pack with easy operation & maintenance. Infinitely variable Feed Control Valve for Setting the Cutting feed. Electrical control panel with high quality switchgears. Optional Accessories: Bundle cutting attachment. Chip Conveyor System. Job Roller Support Stand. Wire Brush for chips cleaning. Bi-metal Bandsaw blades. Variable Vice pressure for thin walled job. Centralized Automatic Lubrication System. A.C. Drive for Infinitely variable speed control. TECH SPECIFICATIONS- Cutting Capacity (MM) Round – 660, Rectangle – 660 x 660 Cutting Speed in mtr/ min. 20 – 100 Blade Size (MM) 8600 x 67 x 1.3 mm Blade Tension Hydraulic Saw Motor (H.P.) 12.5 HP Hydraulic Motor (H.P.) 3.0 HP Coolant Motor (H.P.) 0.25 HP Job Clamping Hydraulic Job Indexing (MM) Manual Hydraulic Reservoir (Ltr) 80 Ltr. Over all Dimension 3200 x 1950 x 2150 mm
