Description
Product details

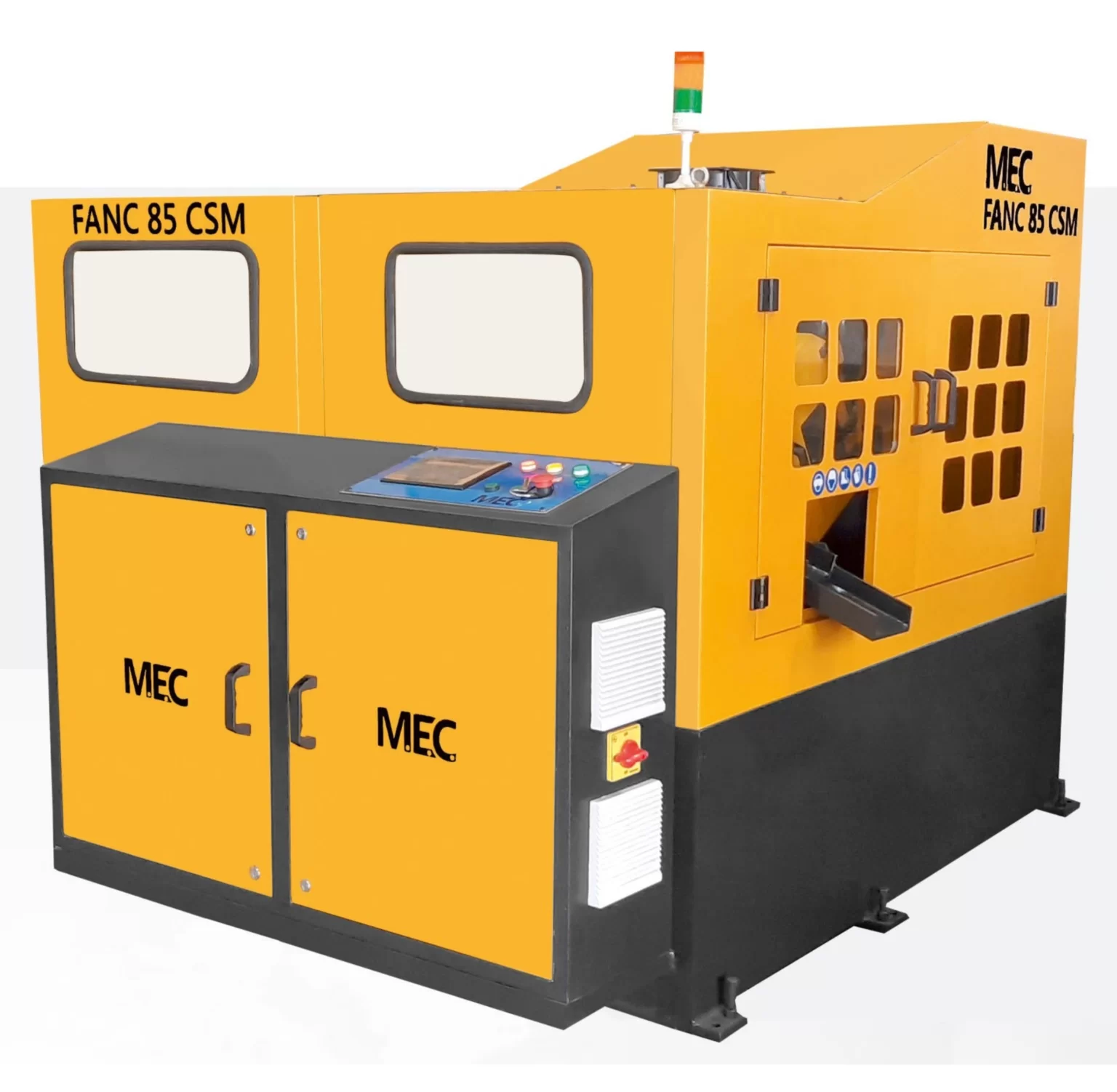

Circular Saw Machine is available in numerically controlled, fully automatic, semi-automatic & Special purpose versions. The machine provide vibration free cutting that optimize production and blade life. Easy operation, long lasting life and high authenticity are the unique features of machines. Circular Saw machines are extremely fast compared to the conventional Double Column Band Saw Machine and, are designed to cut ferrous and non ferrous metals like Mild Steel, Alloy Steels Copper, Bronze, Aluminum etc. FEATURES- Torsion free construction of Heavy duty Fabricated Structure of Machine. Infinitely variable servo controlled cutting feed. Cutting feed through Ball Screw Servo motor and VFD for Variable cutting speed. Rapid approach (reference) movement of Cutting Head by Ball Screw Servo motor. Indexing of material through Ball Screw Servo motor arrangement. Auto rapid return of cutting head after completion of cut. Auto and manual mode for cycle sequence. Hydraulic Operated job clamping horizontal Vice. Heavy duty reduction Gearbox for heavy cutting torque mounted on linear guide ways for vibration free cutting to optimize cutter life & production. Micro mist spray cooling arrangement. Inbuilt Hydraulic Power pack with easy check & maintenance. Electrical Control Panel with quality switch-gears. The saw motor speed is controlled with A.C. frequency drive. Angular Saw stroke, optimized to achieve the shortest stroke of the Saw. Motorized wire brush for cleaning of chips from circular blade. Automatic trim Cut with enable disable option. Cut of length measured by PLC Using Servo Drive arrangement. PLC Control system with 7″ Touch Screen HMI. Automatic Lubrication pump. TECH SPECIFICATIONS- Cutting Capacity 25 – 100 mm (Round) Cutter Type TCT / HSS Cutter Size 360 & 420 x 2.5 mm Saw Motor 20.0 HP Hydraulic Motor 2.0 HP Coolant Motor 0.15 HP Job Clamping Hydraulic Hydraulic Reservoir 90 Ltr. Electrical Control Through PLC Panel
