Description
Product details

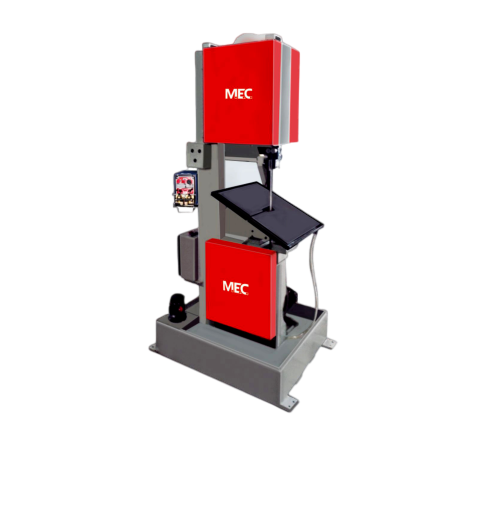

We have gained immense expertise in delivering Metal Cutting, Riser Cutting, Aluminium Cutting, and special purpose vertical metal cutting bandsaw machine. The offered range of bandsaw machines is developed utilizing optimum grade raw material and latest techniques in complete tandem with the industry laid norms and standards. Additionally, the Tilting table facility provide the better suitability to cut the job in required position. FEATURES- Standard equipment Special bearing housing with heavy duty angular contact bearing to isolate the gear box from the load of blade tensioning Angles to be set manually Variable frequency drive to set the blade speed precisely depending on the material State of the art of manual blade tensioning Friction type rotating cleaning wire brush Ergonomically designed electrical console Separate coolant tank with pump Movable blade guide arm for precise cutting and better tool life TECH SPECIFICATIONS- Cutting Capacity (MM)-100 mm Blade Size (MM)-3760 x 27 x 0.9 mm Table Tilt 15* one side & 45* another side Blade Tension-Manual Saw Motor (H.P.)-2.0 HP Coolant Motor (H.P.)-0.12 HP Job Feeding-Manual
